1050 1060 1064±50nm OCT Broadband Fiber Optic Couplers

  • Wavelength: or Custom Wavelength 1064nm 1053nm 1050nm
  • Handling Power: 1W or Custom Handling Power
  • Fiber Type: Single Mode Fiber
Product Details

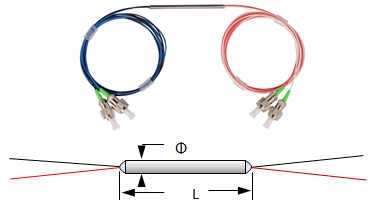

  The 2×2 1050nm 1060 1064±50nm Broadband Single Mode Fused Fiber Optic Couplers are built by using fused biconical taper (FBT) technology. It can be used to split the input signal at various ratios with low insertion loss. It's designed for wideband operation and ideal for Optical Coherence Tomographys OCT systems.




                                                  Features
                                                        Low Excess Loss
                                                        High Reliability & Stability
                                                        Various Coupling Ratio


                                                        Applications
                                                        Instrument
                                                        OCT
                                                        Fiber Sensor
                                                        Lab & Research



  Performance Specification





  Parameter

Value

Unit
  Configuration

2X2


  Center Wavelength

1050, 1060, 1064 or customized

nm
  Bandwidth

±50

nm
  Typ. Excess Loss

0.5

dB
                  50/50

3.8/3.8

dB
                  40/60

5.0/3.0

dB
                  30/70

6.4/2.2

dB
                  20/80

8.2/1.7

dB
  Max. Insertion Loss   10/90

11.7/0.95

dB
                  5/95

14.7/0.7

dB
                  3/97

17.0/0.6

dB
                  2/98

18.7/0.55

dB
                  1/99

22.1/0.49

dB
  Max. PDL

0.2

dB
  Min. Directivity

55

dB
  Min. Return Loss

50

dB
  Fiber Type

Corning HI 1060 Flex


  Operating Temperature

-40 to +80

  Storage Temperature

-50 to +85

  Package Dimension

Φ3.0×L54

mm

  Note
  *  Above specifications are for device without connectors.
  * Please tell us to confirm if you have special requirement of the fiber length tolerance.


  Ordering Information

  SMBC-AAAA-BB-CC-DD-E-FF-GG
  AAAA       BB       CC       DD           E             FF       GG
  Wavelength   Port     Coupling Ratio Fiber Type   Fiber Jacket   Fiber Length Connector

  1050 - 1050nm   22 - 2X2   01 - 01/99   H6 - HI 1060 Flex Fiber B - 250um Bare   05 - 0.5m   NE - None
  1060 - 1060nm   12 - 1X2   02 - 02/98   SS - Specify   Tube   08 - 0.8m   FA - FC/APC
  1064 - 1064nm   SS - Specify   04 - 04/96                 L - 900um Loose   10 - 1.0m   FP - FC/PC
  SSSS - Specify             05 - 05/95                 Tube   15 - 1.5m   SA - SC/APC
                        10 - 10/90                 C - 3.0mm Cable   20 - 2.0m   SP - SC/PC
                        20 - 20/80                     SS - Specify   LA-  LC/APC
                        30 - 30/70                                         LP - LC/PC
                        50 - 50/50                                         SS - Specify
                        SS - Specify
