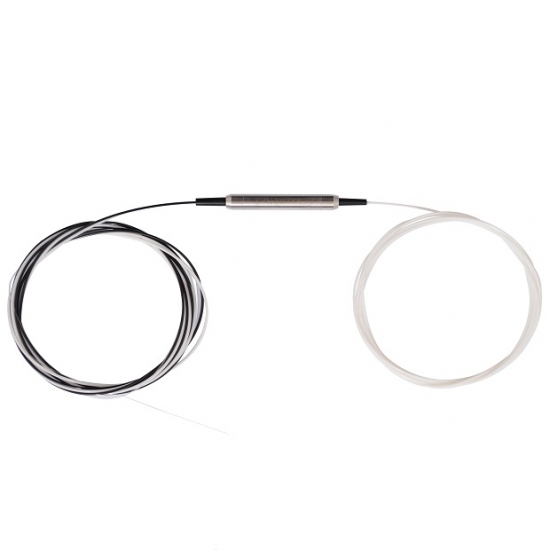

1280-1400nm 3-port Optical Circulator

  • Wavelength: 1310nm
  • Handling Power: 500mW
  • Fiber Type: Single Mode Fiber
Product Details

  The 3 port 1280-1400nm Polarization Insensitive Optical Fiber Circulator is a fiber optic componet built with single mode fiber.  It allows light to be transmitted in only one direction while blocking the opposite transmttion, it's light path is port 1 to port 2, and port 2 to port 3. The fiber circulator is widely used in optical fiber networks and fiber instruments. High Power handling is available upon request.







                                                        Features
                                                        Low IL & High Isolation
                                                        High Reliability and Stability
                                                        Optical Path Epoxy-free
                                                        High Power available on request

                                                        Applications
                                                        OCT
                                                        Fiber Instrument
                                                        DWDM OADM System
                                                        Test & Meaturement



  Performance Specification

  Parameter

Value

Unit
  Center Wavelength (λc)

1310

nm
  Operating Wavelength Range

1280-1400

nm
  Configuration

1X2, (port 12, 23)


  Typ. Insertion Loss (λc, port 12, 23)

1.2

dB
  Max. Insertion Loss (λc, port 12, 23)

1.5

dB
  Typ. Isolation (port 21, 32)

36

dB
  Min. Isolation (port 21, 32)

32

dB
  Max. PDL

0.15

dB
  Max. PMD

0.1

ps
  Min.Cross Talk (port 13)

50

dB
  Min. Directivity

50

dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

500 (higher is available upon request)

  mW
  Max. Tensile Load

5

N
  Fiber Type

SMF-28e Fiber


  Operating Temperature

-5 to +70


  Storage Temperature

-40 to +85


  Package Dimension

Φ5.5×L50

mm

  Note
  *  Above specifications are for device without connector. For devices with connectors, IL will be 0.3dB higher, and RL will be 5dB lower.



  Ordering Information

  PICIR-AAAA-BB-C-DD-EE
  AAAA             BB               C                 DD             EE
  Wavelength         Port           Fiber Jacket         Fiber Length       Connector

  1214 - 1280-1400nm       12 - 1 X 2           B - 250um Bare         05 - 0.5m         NE - None
  SSSS - Specify                           Tube         08 - 0.8m         FA - FC/APC
                              L - 900um Loose         10 - 1.0m         FP - FC/PC
                                      Tube         15 - 1.5m         SA - SC/APC
                                                        SS - Specify         SP - SC/PC
                                                                        LA-  LC/APC
                                                                        LP - LC/PC
                                                                        SS - Specify
