850±50nm Broadband Optical Isolator

  • Wavelength: 850nm 830nm 810nm
  • Handling Power: or Custom Handling Power 500mW
  • Fiber Type: Single Mode Fiber
Product Details

  The 850nm Broadband Polarization Independent (Polarization Insensitive) Optical Fiber Isolator is an in-line pigtailed miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It features wide operating wavelength, low insertion loss. The isolators are commonly used to protect lasers or amplifiers against back-reflected light. High power available upon request.




                                                        Features


                                                    High Isolation
                                                        Low Insertion Loss
                                                        Broadband
                                                        High Power Handling Available

                                                        Applications
                                                        Fiber Amplifier
                                                        Fiber Laser
                                                        Fiber Sensor
                                                        Lab & Research


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

850

nm
  Bandwidth

±50

nm
  Typ. Peak Isolation

33

          dB
  Min. Isolation at 23

26

          dB
  Typ. Insertion Loss at 23

1.0

          dB
  Max. Insertion Loss at 23

1.3 @ 850±30nm, 1.7 @ 850±40nm, 2.0 @ 850±50nm

  dB
  Max. PDL at 23

0.15

                  dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

500 (higher power available on request)

        mW
  Max. Tensile Load

5

N
  Fiber Type

Corning HI 780 Fiber


  Operating Temperature

-5 to +50


  Storage Temperature

-40 to +85

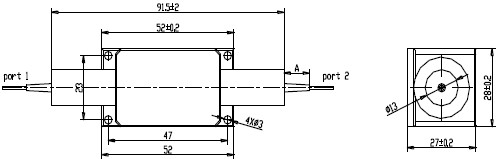

  Package Dimension                 mm

  Note
  * Test at center wavelength without connector. For devices with connectors, IL will be 0.3dB higher, and ER will be 2dB lower.


  Ordering Information

  BI-AAA-B-CC-DD
  AAA                           B               CC           DD
  Wavelength           Fiber Jacket       Fiber Length     Connector

  850 - 850nm                     B - 250um Bare     05 - 0.5m     NE - None
  SSS - Specify                     Fiber     08 - 0.8m     FA - FC/APC
                                L - 900um Loose     10 - 1.0m     FP - FC/PC
                                Tube     15 - 1.5m     SA - SC/APC
                                                SS - Specify     SP - SC/PC
                                                      LA-  LC/APC
                                                              LP - LC/PC
                                                              SS - Specify
