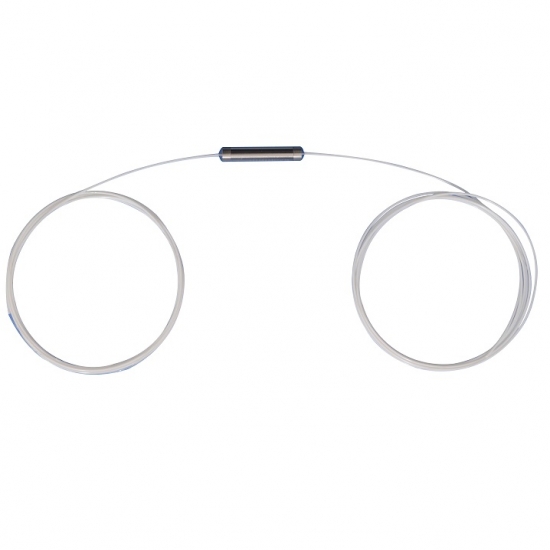

1310nm Mini Optical Isolator

  • Wavelength: or Custom Wavelength 1550nm 1480nm 1310nm
  • Handling Power: 500mW
  • Fiber Type: Single Mode Fiber
Product Details

  The 1310nm Mini Polarization Independent (Polarization Insensitive) Optical Fiber Isolator is an in-line pigtailed miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It features high isolation, low insertion loss and compact size. The optical isolators are commonly used to protect lasers or amplifiers against back-reflected light.




                                                                Features
                                                                High Isolation


                                                      Low Insertion Loss
                                                                Compact Size

                                                                Applications
                                                                Fiber Amplifier
                                                                Fiber Laser & Sensor
                                                                Lab & Research


  Performance Specification

  Parameter

Value

Unit
  Stage

Single Stage

Dual Stage


  Center Wavelength

1310, 1480, 1550 or customized

nm
  Bandwidth

±15

±15

nm
  Typ. Insertion Loss at 23

0.4

0.5

dB
  Max. Insertion Loss at 23

0.6

0.7

dB
  Typ. Peak Isolation

40

48

dB
  Min. Isolation at 23

28

40

dB
  Max. PMD

0.25

ps
  Max. PDL at 23

0.1

dB
  Min. Return Loss

50

dB
  Max. Optical Power (CW)

500

mW
  Max. Tensile Load

5

N
  Fiber Type

Corning SMF-28e


  Operating Temperature

-5 to +70


  Storage Temperature

-20 to +85


  Package Dimension

Φ3.0×L25

mm

  Note
  *  Above specifications are for device without connector
  *  For devices with connectors, IL will be 0.3dB higher and RL will be 5dB lower.


  Ordering Information

  MNISO-AAAA-B-C-DD-EE
  AAAA             B                 C                 DD             EE
  Wavelength         Stage           Fiber Jacket       Fiber Length     Connector

  1310 - 1310nm         S - Single Stage       B - 250um Bare       05 - 0.5m         NE - None
  1480 - 1480nm         D - Dual Stage       Tube         08 - 0.8m         FA - FC/APC
  1550 - 1550nm                           L - 900um Loose       10 - 1.0m         FP - FC/PC
  SSSS - Specify                           Tube         15 - 1.5m         SA - SC/APC
                                                SS - Specify         SP - SC/PC
                                                                        LA-  LC/APC
                                                                        LP - LC/PC
                                                                        SS - Specify
