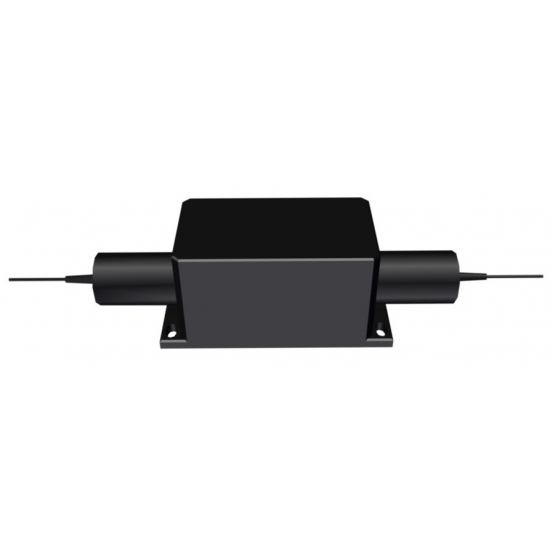

980nm Optical Fiber Isolator

  • Wavelength: or Custom Wavelength 980nm 975nm
  • Handling Power: 10W 5W 3W 1W 500mW or Custom Handling Power
Product Details

  The 980nm High Power Polarization Independent (Polarization Insensitive) Optical Fiber Isolator is an in-line pigtailed miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It features high isolation, low insertion loss and high power handling . The optical isolators are commonly used to protect lasers or amplifiers against back-reflected light.





                                                                  Features


                                                              High Isolation
                                                                  Low Insertion Loss
                                                                  High Power Handling



                                                                  Applications
                                                                  Fiber Amplifier
                                                                  Fiber Laser & Sensor
                                                                  Lab & Research


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

980

nm
  Bandwidth

±10

nm
  Typ. Insertion Loss at 23

0.6

dB
  Max. Insertion Loss at 23

1.0

dB
  Typ. Peak Isolation

36

dB
  Min. Isolation at 23

25

dB
  Max. PDL at 23

0.1

dB
  Min. Return Loss

50

dB
  Max. Optical Power (CW)

0.5, 1, 2, 3, 5, 10

W
  Max. Tensile Load

5

N
  Fiber Type

HI 1060 Fiber


  Operating Temperature

-5 to +50


  Storage Temperature

-20 to +75


  Package Dimension



mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher and RL will be 5dB lower.
  *  For pulse applications, pls discuss with OF-LINK.
  * Connectors only CW 1W handling power guarantee.


  Ordering Information

  HPII-AAA-BB-C-DD-EE-FF
  AAA           BB             C               DD           EE       FF
  Wavelength     Fiber Type     Fiber Jacket       Fiber Length     Connector   Power

  980 - 980nm     H6 - HI 1060 Fiber     B - 250um Bare     05 - 0.5m       NE - None   Z5 - 0.5W
  SSS - Specify     SS - Specify     Fiber     08 - 0.8m       FA - FC/APC   01 - 1W
                        L - 900um Loose     10 - 1.0m       FP - FC/PC   03 - 3W
                                Tube     15 - 1.5m       SA - SC/APC   05 - 5W
                                                SS - Specify       SP - SC/PC   10 - 10W
                                                              LA-  LC/APC   SS - Specify
                                                              LP - LC/PC
                                                              SS - Specify
