1550/980nm High Power PM Tap Coupler Isolator WDM Hybrid

Product Details

The 1550/980 nm High Power PM Tap Coupler+Isolator+WDM Hybrid is a compact-sized hybrid component built by PM Panda fiber which provides function as a WDM with an optical isolator and an tap coupler integrated.  Forward pump type and backward pump type are both available. It's widely used in EDFA systems. High Power handling is available upon request.

                                                        Features
                                                          Low Insertion Loss
                                                          High Extiction Ratio
                                                          High Isolation
                                                          High Power Available

                                                          Applications
                                                          EDFA
                                                          Fiber Amplifier
                                                          Lab & Research


Performance Specification

Parameter

Value

Unit
Signal Wavelength

1550 (1528-1564), or 1590 (1570-1605)

nm
Pump Wavelength

980 (965-1000)

nm
Stage

Single Stage

Dual Stage


Isolation @ 23, Signal Wavelength, all SOP for Com to Signal Port

30





  46       dB




          dB
Wavelength Isolation Signal Channel@Pump Wavelength for Signal to Com

30

      dB
          dB
Pump Channel@Signal Wavelength for Pump to Com

12

      dB
          dB
Insertion Loss           (0-70,         all Sop) Pump Channel@Pump Wavelength for Pump to Com

0.6

      dB
          dB
Signal Channel (EL*)@Signal Wavelength for Signal to Com

1.4

      dB
          dB
Tap Channel@ Signal Wavelength for Signal to Tap Tap 1%

19.2-22.0





        dB
Tap 2%

16.2-18.0





        dB
Tap 5%

12.2-14.0





          dB
Max. PMD

0.25

0.1

ps
Min. Extinction Ratio

20

dB
Min. Return Loss

50

dB
Max. Optical Power (Continuous Wave)

0.3, 1, 3, 5 or customized

  W
Max. Tensile Load

5

N
Fiber Type

PM 1550 fiber for Comm/Signal Port, or customized




SMF-28e or PM 1550 fiber for Tap Port, or customized




HI 1060 or PM 980 fiber for Pump Port, or customized


Operating Temperature

0 to +70

Storage Temperature

-40 to +85

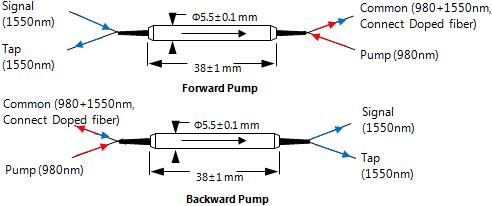

Package Dimension

Φ5.5×L38

mm

Note
* Connectors only CW 1W handling power guarantee.
*  For devices with connectors, IL will be 0.3dB higher, and RL will be 5dB lower.
*  For high power aplications, IL will be 0.2dB higher, and for pulse applications please contact us to confirm details.
* Specs subject to change without notice.


Ordering Information

HPMTIWDM-AAAA/AAA-B-CC-D-EE-FF-G-HH
AAAA/AAA     B         CC     D           EE       FF     G         HH
Wavelength     Stage   Tap Ratio Fiber Jacket   Fiber Length Connector Working Axis Power

1550/980 - T1550/R980 S - Single Stage 01 - 1% B - 250um Bare 05 - 0.5m NE - None F - Fast Axis  Z3 - 0.3W
1590/980 - T1590/R980 D - Dual Stage 02 - 2% Fiber 08 - 0.8m FA - FC/APC Blocked 01 - 1W
SSSS/SSS - Specify           05 - 5% L - 900um Loose 10 - 1.0m FP - FC/PC B - Both Axes 02 - 2W
            10 - 10% Tube 15 - 1.5m SA - SC/APC Operating 03 - 3W
                        20 - 20%             SS - Specify SP - SC/PC           05 - 5W
                        SS - Specify                       LA-  LC/APC           SS - Specify
                                                      LP - LC/PC
                                                      SS - Specify
