1550/1480nm High Power SM Isolator WDM Hybrid for EDFA

  • Wavelength: 1480nm 1550nm 1590nm
  • Handling Power: 300mW 1W 2W 3W 5W 10W or Custom Handling Power
  • Fiber Type: Single Mode Fiber
Product Details

The 1550/1480 nm High Power Isolator WDM Hybrid combines Filter WDM and optical isolator into a compact package to offer cost saving solution. This devices is ideal for fiber amplifier applications to combine signal and pump wavelengths with very stable 1550 nm signal isolation. High power available upon request.


                                                        Features
                                                        Low Insertion Loss
                                                        High Isolation
                                                        Compact Size
                                                        High Power Handling on Request

                                                        Applications
                                                        EDFA
                                                        Fiber Laser
                                                        Lab & Research


Performance Specification

Parameter

Value

Unit
Stage

Single Stage

Dual Stage

    dB
Signal   Wavelength

1550 (1530-1570 or customized)

    nm
  Typ. Insertion Loss (SC)

0.8

0.9

    dB
  Max. Insertion Loss (SC)

1.0

1.2

    dB
  Min. Isolation

28

45

    dB
Pump Wavelength

1480 (1450-1490)

    nm
Typ. Insertion Loss (PC)

0.5

0.5

    dB
Max. Insertion Loss (PC)

0.7

0.7

    dB
Max. PDL

0.1

dB
Max. Thermal Stability

0.005

dB/
Min. Return Loss

50

dB
Max. Optical Power (Continuous Wave)

0.3, 1, 3, 5 or customized

      W
Max. Tensile Load

5

N
Fiber Type

SMF-28e Fiber for Signal Port




SMF-28e Fiber for Pump & Common Ports


Operating Temperature

-5 to +70

Storage Temperature

-40 to +85

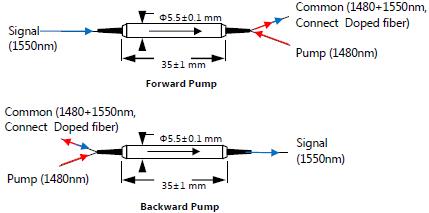

Package Dimension

 Φ5.5×L35

mm

Note
* Connectors only CW 1W handling power guarantee.
* For pulse applications, pls discuss with OF-LINK.
* Insertion Loss wil be 0.2dB lower for low power (300mW) operating.
* Specs subject to change without notice.


Ordering Information

HPIWDM-AAAA/AAA-B-C-D-EE-FF-GG
AAAA/AAA     B         C           D         EE         FF             GG
Wavelength     Stage   Pump Type Fiber Jacket Fiber Length     Connector       Power

1550/1480 - 1550/1480 S - Single Stage F - Forward B - 250um Bare 05 - 0.5m     NE - None       Z3 - 0.3W
1590/980 - 1590/1480 D - Dual Stage B - Backward Fiber 08 - 0.8m     FA - FC/APC       01 - 1W
SSSS/SSS - Specify                 L - 900um Loose 10 - 1.0m     FP - FC/PC       02 - 2W
                        Tube 15 - 1.5m     SA - SC/APC       03 - 3W
                                              SS - Specify     SP - SC/PC       05 - 5W
                                                          LA-  LC/APC       SS - Specify
                                                          LP - LC/PC
                                                          SS - Specify
