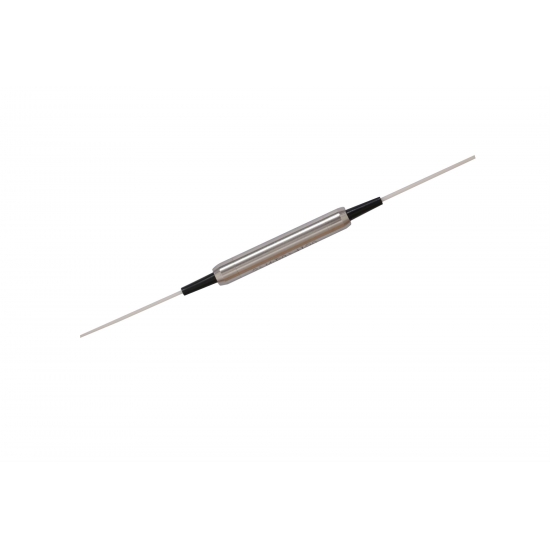

1053nm Band Pass Filter 20W

  • Wavelength: or Custom Wavelength 1053nm 1050nm
  • Handling Power: or Custom Handling Power 20W 10W 3W 5W 1W
  • Fiber Type: Single Mode Fiber
Product Details

  The 1053nm High Power Band-pass Filter is based on thin-film filter technology that passes wavelengths within a certain range and rejects (attenuates) wavelengths outside that range. The band-pass filter features high isolation, low insertion loss and high power handling .



                                                                  Features


                                                            High Isolation
                                                                  Low Insertion Loss
                                                                  High Power Handling

                                                                  Applications
                                                                  Fiber Laser
                                                                  Fiber Sensor
                                                                  FBG Applications


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength (λc)

1053 or customized

nm
  Operating Wavelength Range

±0.5

nm
  Pass Band

λc±2.5

 λc±5.0

  nm
  Min. Pass Isolation @ 20dB Down

12

22

nm
  Typ. Insertion Loss

0.5

dB
  Max. Insertion Loss at Pass Band

0.7

dB
  Max. PDL

0.1

dB
  Min. Return Loss

50

dB
  Max. Thermal Stability

0.005

dB/
  Max. Optical Power (CW)

0.5, 1, 2, 5, 7, 10, 20 or Customized

W
  Max. Tensile Load

5

N
  Fiber Type

HI 1060 Fiber, 10/125 fiber or customized


  Operating Temperature

-5 to +65


  Storage Temperature

-20 to +75


  Package Dimension

Φ5.5×L35

mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher and RL will be 5dB lower.
  *  For pulse applications, pls discuss with OF-LINK.
  *  Connectors only CW 1W handling power guarantee.


  Ordering Information

  HPBPF-AAAA-BB-C-DD-EE-FF
  AAAA         BB             C               DD           EE       FF
  Wavelength     Pass Band     Fiber Jacket       Fiber Length     Connector   Power

  1053 - 1053nm     05 - 5nm       B - 250um Bare     05 - 0.5m       NE - None   Z5 - 0.5W
  1064 - 1064nm     10 - 10nm       Fiber     08 - 0.8m       FA - FC/APC   07 - 7W
  SSSS - Specify     SS - Specify       L - 900um Loose     10 - 1.0m       FP - FC/PC   10 - 10W
                                Tube     15 - 1.5m       SA - SC/APC   20 - 20W
                                                SS - Specify       SP - SC/PC   SS - Specify
                                                              LA-  LC/APC
                                                              LP - LC/PC
                                                              SS - Specify
