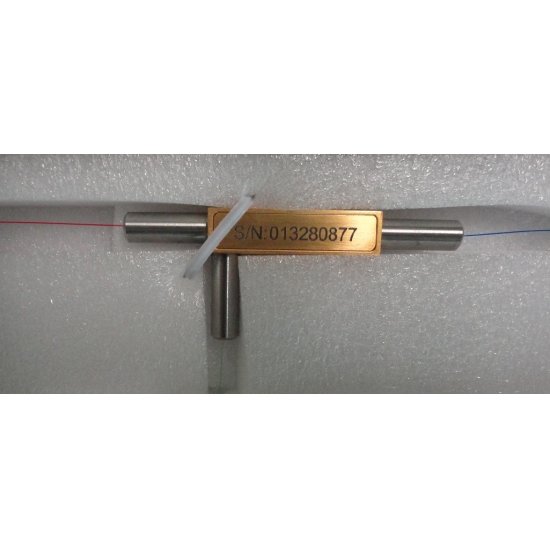

1550nm High Power Opical Circulator 10W

  • Wavelength: or Custom Wavelength 1550nm 1480nm 1310nm
  • Handling Power: or Custom Handling Power 10W 5W 2W 3W 1W
  • Fiber Type: Single Mode Fiber
Product Details

  The 3 port 1550nm High Power Polarization Insensitive Optical Circulator is a fiber optic componet built with SM fiber.  It allows light to be transmitted in only one direction while blocking the opposite transmttion, it's light path is port 1 to port 2, and port 2 to port 3.





                                                              Features
                                                              Low Insertion Loss


                                                          High Isolation
                                                              Optical Path Epoxy-free
                                                              High Power Handling

                                                              Applications
                                                              EDFA & Raman Amplifier
                                                              Fiber Sensor
                                                              Dispersion Compensation
                                                              Test & Meaturement
                                                              WDM Systems


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

1550 or customized

nm
  Bandwidth

±10

nm
  Configuration

1X2, (port 12, 23)


  Typ. Insertion Loss (port 12, 23)

0.9

dB
  Max. Insertion Loss (port 12, 23)

1.2

dB
  Typ. Isolation (port 21, 32)

26

dB
  Min. Isolation (port 21, 32)

20

dB
  Max. PDL (port 12, 23)

0.15

dB
  Min.Cross Talk (port 13)

50

dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

1, 3, 5, 10

  W
  Max. Tensile Load

5

N
  Fiber Type

Corning SMF-28e Fiber


  Operating Temperature

-5 to +50


  Storage Temperature

-40 to +85


  Package Dimension

L34×W8.4×H8.4

mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.
  *  Connectors only CW 1W handling power guarantee.
  *  Package may  change according to different handling power.


  Ordering Information

  HPCIR-AAAA-BB-C-DD-EE-FF
  AAAA         BB           C             DD           EE           FF
  Wavelength     Port     Fiber Jacket     Fiber Length     Connector       Power

  1310 - 1310nm     12 - 1 X 2       B - 250um Bare   05 - 0.5m       NE - None       01 - 1W
  1480 - 1480nm                   Fiber   08 - 0.8m                     02 - 2W
  1550 - 1550nm                   L - 900um Loose   10 - 1.0m                     03 - 3W
  SSSS - Specify                   Tube   15 - 1.5m                     05 - 5W
                                            SS - Specify                     10 - 10W
                                                                        SS - Specify
