High Power Fiber Collimators 980 1030 1040 1053 1064 1080nm

  • Wavelength: 975nm 980nm 1030nm 1040nm 1050nm 1053nm 1064nm 1080nm or Custom Wavelength
  • Handling Power: 500mW 1W 2W 3W 5W 10W 20W or Custom Handling Power
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber Single Mode Fiber Multi-mode Fiber
Product Details

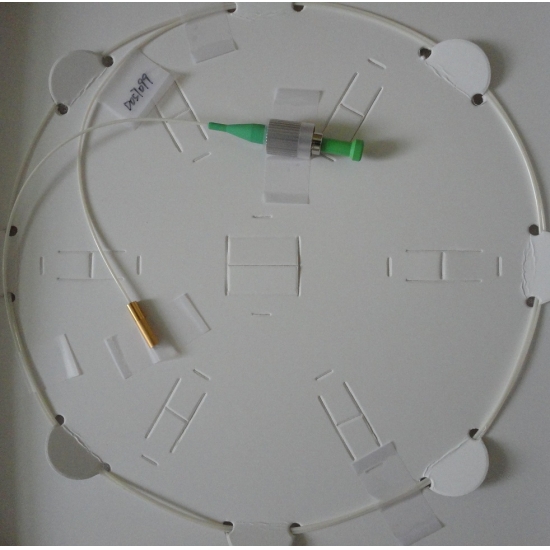

  The 980, 1030 1040 1053 1064 nm High Power Fiber Collimator is composed of fiber pigtail and lens, it can be used to emit beams with a specified working distance or parallel beams. Or, they can be used to launch a laser beam into a optical fiber. Customized fiber type, beam diameter and working distance available upon request, the high power collimator's handling power could be upto 20W.






                                                Features
                                                          Low Insertin Loss
                                                          Various Fiber Types
                                                          High Power Handling


                                                          Applications
                                                          Fiber Laser
                                                          Free Space Communications
                                                          Lab & Research




  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

980, 1030, 1040, 1053, 1064 or 1080

nm
  Bandwidth

±20

nm
  Working Distance

0-201

200-501

500-801

800-1201

      mm
  Nominal Beam Diameter

0.52

0.85

1.09

1.52

      mm
  Typ. Insertion Loss

0.25

0.45

0.55

0.8

      dB
  Max. Insertion Loss

0.5

0.7

0.8

1.2

      dB
  Package Dimension (Metal Holder)

Φ3.2×L10

Φ3.2×L14

Φ3.8×L14

Φ3.8×L17

      mm
  Lens OD (C Lens)

1.8

1.8

2.78

2.78

      mm
  Min. Return Loss

55

dB
  Max. Optical Power (Continuous Wave)

1, 3, 5, 10, 20 or customized

            W
  Max. Peak Power for ns pulse

1, 3, 5, 10, 20 or customized

            kW
  Max. Tensile Load

5

N
  Fiber Type

HI 1060, 10/125, 20/125 Fiber or Customized


  Operating Temperature

-5 to +70

  Storage Temperature

-50 to +85


  Note
  *  Test at center wavelength without connector. For devices with connectors, IL will be 0.5dB higher, and RL will be 5dB lower.
  * Higher power available upon request.
  * Connecotors only Max. CW 1W guarantee.
  * Specifications may change without notice, please confirm before placing order.


  Ordering Information

  HPCL-AAAA-BBB-CCC-DD-E-FF-GG-HH
  AAAA     BBB       CCC     DD         E               FF     GG     HH
  Wavelength Beam Diameter   Working Distance Fiber Type   Fiber Jacket Length   Bare Fiber Length Connector Power

  980 - 980nm 052 - 0.52mm   050 - 50mm 06 - 6/125 Fiber B - 250um Bare Fiber   05 - 0.5m NE - None Z5 - 0.5W
  1030 - 1030nm 085 - 0.85mm   100 - 100mm 10 - 10/125 Fiber L - 900um Loose Tube   08 - 0.8m FA - FC/APC 01 - 1W
  1040 - 1040nm 109 - 1.09mm   200 - 200mm 20 - 20/125 Fiber                 10 - 1.0m FP - FC/PC 03 - 3W
  1053 - 1053nm 152 - 1.52mm   300 - 300mm SS - Specify                 15 - 1.5m SA - SC/APC 05 - 5W
  1064 - 1064nm SSS - Specify   500 - 500mm                             SS - Specify SP - SC/PC 10 - 10W
  1080 - 1080nm           800 - 800mm                               LA-  LC/APC 20 - 20W
  SSSS - Specify           1000 - 1000mm                                     LP - LC/PC SS - Specify
                      SSS - Specify                                     SS - Specify
