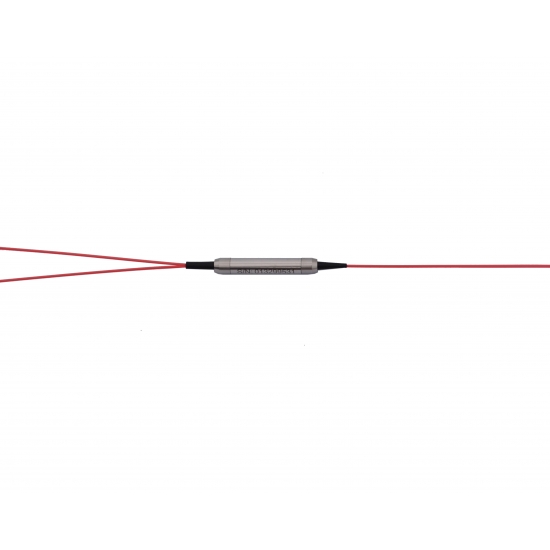

1650nm Polarization Beam Splitter Combiner

  • Wavelength: or Custom Wavelength 1650nm 1625nm
  • Handling Power: or Custom Handling Power 500mW
  • Fiber Type: Single Mode Fiber Polarization Maintaining (PM) Panda Fiber
Product Details

  Polarization Beam Combiner Splitter 1650nm

  The 1650 nm Polarization Beam Combiner / Splitter is a micro-optic component designed to combine two orthogonal polarization signals into one single fiber, or, it can also be used to split orthogonal polarizations from a single input fiber (PM fiber or SM fiber) into two output PM fibers. It's widely used in EDFA or Raman Amplifier to enlarge pump power by combining two pump laser signals into a single ouput fiber. High Power handling is available upon request.





                                                      Features
                                                      Low Insertion Loss


                                                High Extinction Ratio
                                                      High Reliabilty & Stability
                                                      High Power available on request

                                                      Applications
                                                      EDFA & Raman Amplifier
                                                      Fiber Sensor
                                                      Combine or Split Orthogonal Polarizations
                                                      Test & Meaturement



  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

1625, 1650, or customized

nm
  Bandwidth

±10

nm
  Configuration

1X2


  Typ. Insertion Loss

0.7

dB
  Max. Insertion Loss

0.9

dB
  Min. Extinction Ratio (for splitter only)

20

dB
  Min. Directivity

50

dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

500 (higher is available upon request)

  mW
  Max. Tensile Load

5

N
  Fiber Type

PM Panda Fiber on Port 1 & Port 2




PM Panda Fiber or SMF-28e Fiber on Port 3


  Operating Temperature

-5 to +65


  Storage Temperature

-40 to +85


  Package Dimension

Φ5.5×L35

mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
  *  The PM fiber and the connector key are aligned to the slow axis.
  *  For high power apllications, please contact us to confirm details.


  Ordering Information

  PBCS-AAAA-BB-C-DD-EE
  AAAA             BB                     C             DD             EE
  Wavelength   Fiber Type on Port 3       Fiber Jacket     Fiber Length       Connector

  1625 - 1625nm       SM - SMF-28e Fiber   B - 250um Bare   05 - 0.5m       NE - None
  1650 - 1650nm       P1 - PM Panda Fiber,   Fiber   08 - 0.8m       FA - FC/APC
  SSSS - Specify       Slow Axis Aligned 45° to Port 1   L - 900um Loose   10 - 1.0m       FP - FC/PC
        P2 - PM Panda Fiber,   Tube   15 - 1.5m       SA - SC/APC
        Slow Axis Aligned to Port 1                 SS - Specify       SP - SC/PC
        SS - Specify                                         LA-  LC/APC
                                                              LP - LC/PC
                                                              SS - Specify
