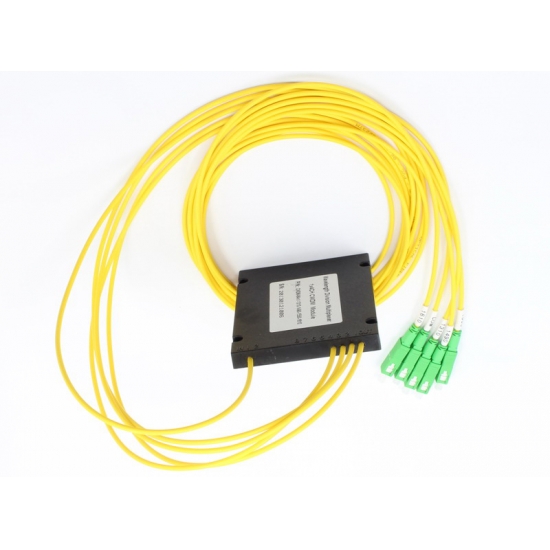

1X4 100G Polarization Maintaining DWDM Module
The 4 Channel 100G Polarization Maintaining Dense Wavelength Division Mulitplexer (PM DWDM Module) is based on thin-film filter technology compliant to ITU standard. It provides single channel add or drop function, or it can be cascaded into sequence for multi-channel applications in DWDM systems. 1X4, 1X8 Multi-channel are available. | ||||||||||||||||||||||||||||||||||||||||||
Features | ||||||||||||||||||||||||||||||||||||||||||
ITU Standard | ||||||||||||||||||||||||||||||||||||||||||
Low IL & High ER | ||||||||||||||||||||||||||||||||||||||||||
High Channel Isolation | ||||||||||||||||||||||||||||||||||||||||||
Telcordia Compliant Test | ||||||||||||||||||||||||||||||||||||||||||
Applications | ||||||||||||||||||||||||||||||||||||||||||
Broadband Optical System | ||||||||||||||||||||||||||||||||||||||||||
DWDM System | ||||||||||||||||||||||||||||||||||||||||||
Optical Communications | ||||||||||||||||||||||||||||||||||||||||||
Fiber Sensor | ||||||||||||||||||||||||||||||||||||||||||
Performance Specification | ||||||||||||||||||||||||||||||||||||||||||
Parameter |
Value |
Unit | ||||||||||||||||||||||||||||||||||||||||
Channel Spacing |
100 |
GHz | ||||||||||||||||||||||||||||||||||||||||
Center Wavelength |
ITU Grid |
nm | ||||||||||||||||||||||||||||||||||||||||
Min. Channel Passband (@-0.5dB) |
0.22 (±0.11) |
nm | ||||||||||||||||||||||||||||||||||||||||
Max. Insertion Loss |
2.4 |
dB | ||||||||||||||||||||||||||||||||||||||||
Min. Adjacent Channel Isolation for Demux |
25 (15 for Mux) |
dB | ||||||||||||||||||||||||||||||||||||||||
Min. Non-Adjacent Channel Isolation for Demux |
40 (25 for Mux) |
dB | ||||||||||||||||||||||||||||||||||||||||
Typ. Extinction Ratio |
20 |
dB | ||||||||||||||||||||||||||||||||||||||||
Min. Extinction Ratio |
18 |
dB | ||||||||||||||||||||||||||||||||||||||||
Min. Directivity |
50 |
dB | ||||||||||||||||||||||||||||||||||||||||
Max. Thermal Stability |
0.005 |
dB/℃ | ||||||||||||||||||||||||||||||||||||||||
Center Wavelength Stability |
0.002 |
nm/℃ | ||||||||||||||||||||||||||||||||||||||||
Min. Return Loss |
45 |
dB | ||||||||||||||||||||||||||||||||||||||||
Max. Optical Power (Continuous Wave) |
300 |
mW | ||||||||||||||||||||||||||||||||||||||||
Max. Tensile Load |
5 |
N | ||||||||||||||||||||||||||||||||||||||||
Fiber Type |
PM Panda Fiber |
|||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-5 to +70 |
℃ | ||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
-40 to +85 |
℃ | ||||||||||||||||||||||||||||||||||||||||
Package Dimension |
Plastic Box 100X80X10 |
mm | ||||||||||||||||||||||||||||||||||||||||
Note | ||||||||||||||||||||||||||||||||||||||||||
* For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. | ||||||||||||||||||||||||||||||||||||||||||
* The PM fiber and the connector key are aligned to the slow axis. | ||||||||||||||||||||||||||||||||||||||||||
Ordering Information | ||||||||||||||||||||||||||||||||||||||||||
PMDWDMM-AAA-BB-C-DD-E-FF-GG | ||||||||||||||||||||||||||||||||||||||||||
AAA | BB | C | DD | E | FF | GG | ||||||||||||||||||||||||||||||||||||
Channel Spacing | Channel Number | Module Type | Initial Wavelength (ITU Grid) | Fiber Jacket | Fiber Length | Connector | ||||||||||||||||||||||||||||||||||||
100 - 100GHz | 04 - 4 Channel | M - Mux | 01 - CH01 | B - 250um Bare | 05 - 0.5m | NE - None | ||||||||||||||||||||||||||||||||||||
200 - 200GHz | 08 - 8 Channel | D - Demux | 02 - CH02 | Fiber | 08 - 0.8m | FA - FC/APC | ||||||||||||||||||||||||||||||||||||
SS - Specify | ... | L - 900um Loose | 10 - 1.0m | FP - FC/PC | ||||||||||||||||||||||||||||||||||||||
60 - CH60 | Tube | 15 - 1.5m | SA - SC/APC | |||||||||||||||||||||||||||||||||||||||
SS - Specify | SP - SC/PC | |||||||||||||||||||||||||||||||||||||||||
LA- LC/APC | ||||||||||||||||||||||||||||||||||||||||||
LP - LC/PC | ||||||||||||||||||||||||||||||||||||||||||
SS - Specify |
Previous1X4 200G Polarization Maintaining DWDM Module
Next200G Polarization Maintaining DWDM
