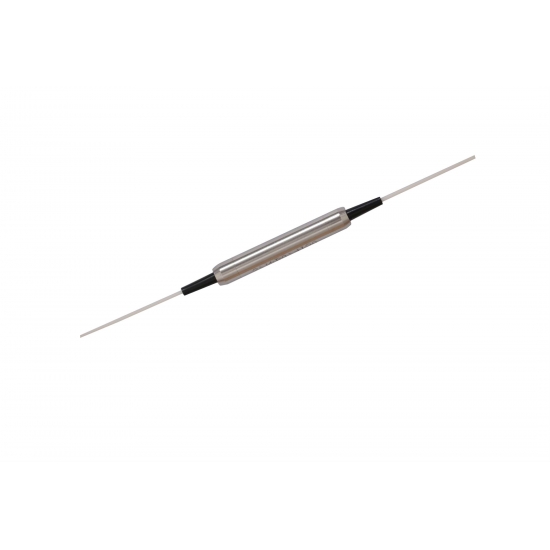

1950nm Fiber Optic In-line Polarizer
The 1950nm (2 micron, 2μm) Fiber Optic In-line Polarizer is a fiber optic component built with PM panda fiber or SM fiber. It allows light to be transmitted in only one polarization (fast axis or slow axis) while blocking the other polarization transmittion, it can be used to convert un-polarized light into polarized light with high extinction ratio, and it can also be used to increase the polarization extinction ratio of signals with its excellent polarization proerties. OF-LINK offers in-line optical polarizers work at wavelengths from 830nm to 2000nm, and high Power handling is available upon request. | ||||||||||||||||||||||||||||||||||||||||
Features | ||||||||||||||||||||||||||||||||||||||||
High Extinction Ratio | ||||||||||||||||||||||||||||||||||||||||
|
Low Insertion Loss | |||||||||||||||||||||||||||||||||||||||
High Return Loss | ||||||||||||||||||||||||||||||||||||||||
High Power available on request | ||||||||||||||||||||||||||||||||||||||||
Applications | ||||||||||||||||||||||||||||||||||||||||
Fiber Amplifiers & Fiber Lasers | ||||||||||||||||||||||||||||||||||||||||
Eliminating unwanted polarization states | ||||||||||||||||||||||||||||||||||||||||
Polarization/PMD Monitoring | ||||||||||||||||||||||||||||||||||||||||
Improving Polarization Extinction Ratio | ||||||||||||||||||||||||||||||||||||||||
Instrumentation | ||||||||||||||||||||||||||||||||||||||||
Performance Specification | ||||||||||||||||||||||||||||||||||||||||
Parameter |
Value |
Unit | ||||||||||||||||||||||||||||||||||||||
Center Wavelength |
1950 or customized |
nm | ||||||||||||||||||||||||||||||||||||||
Bandwidth |
±20 |
nm | ||||||||||||||||||||||||||||||||||||||
Typ. Insertion Loss |
0.8 |
dB | ||||||||||||||||||||||||||||||||||||||
Max. Insertion Loss |
1.0 |
dB | ||||||||||||||||||||||||||||||||||||||
Typ. Extinction Ratio |
28 |
dB | ||||||||||||||||||||||||||||||||||||||
Min.Extinction Ratio |
25 |
dB | ||||||||||||||||||||||||||||||||||||||
Min. Return Loss |
50 |
dB | ||||||||||||||||||||||||||||||||||||||
Max. Optical Power (Continuous Wave) |
500 (higher power available upon request) |
mW | ||||||||||||||||||||||||||||||||||||||
Max. Tensile Load |
5 |
N | ||||||||||||||||||||||||||||||||||||||
Fiber Type |
PM 1950 Panda Fiber or SMF-28e Fiber |
|||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-5 to +70 |
℃ | ||||||||||||||||||||||||||||||||||||||
Storage Temperature |
-40 to +85 |
℃ | ||||||||||||||||||||||||||||||||||||||
Package Dimension |
Φ5.5×L35 |
mm | ||||||||||||||||||||||||||||||||||||||
Note | ||||||||||||||||||||||||||||||||||||||||
* For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. | ||||||||||||||||||||||||||||||||||||||||
* The PM fiber and the connector key are aligned to the slow axis. | ||||||||||||||||||||||||||||||||||||||||
* For high power apllications, please contact us to confirm details. | ||||||||||||||||||||||||||||||||||||||||
Ordering Information | ||||||||||||||||||||||||||||||||||||||||
ILP-AAAA-B-C-DD-EE | ||||||||||||||||||||||||||||||||||||||||
AAAA | B | C | DD | EE | ||||||||||||||||||||||||||||||||||||
Wavelength | Fiber Type (Input/Output) | Fiber Jacket | Fiber Length | Connector | ||||||||||||||||||||||||||||||||||||
1950 - 1950nm | 1 - SMF-28e Fiber (Input) | B - 250um Bare | 05 - 0.5m | NE - None | ||||||||||||||||||||||||||||||||||||
SSSS - Specify | PM 1950 Panda Fiber (Ouput) | Fiber | 08 - 0.8m | FA - FC/APC | ||||||||||||||||||||||||||||||||||||
2 - PM 1950 Panda Fiber (Input) | L - 900um Loose | 10 - 1.0m | FP - FC/PC | |||||||||||||||||||||||||||||||||||||
PM 1950 Panda Fiber (Ouput) | Tube | 15 - 1.5m | SA - SC/APC | |||||||||||||||||||||||||||||||||||||
3 - SMF-28e Fiber (Input) | SS - Specify | SP - SC/PC | ||||||||||||||||||||||||||||||||||||||
SMF-28e Fiber (Ouput) | LA- LC/APC | |||||||||||||||||||||||||||||||||||||||
LP - LC/PC | ||||||||||||||||||||||||||||||||||||||||
SS - Specify |
Previous1950nm Polarization Beam Splitter Combiner
NextBand Pass Filter 1550nm, pass band 1nm 2nm 5nm 10nm 15nm
-
2000nm Fiber Optic In-line Polarizer -
830nm Fiber Optic In-line Polarizer -
850nm Fiber Optic In-line Polarizer -
980nm Fiber Optic In-line Polarizer -
1030 1040nm Fiber Optic In-line Polarizer -
1050 1053nm Fiber Optic In-line Polarizer -
1064nm Fiber Optic In-line Polarizer -
1080nm Fiber Optic In-line Polarizer -
1310nm Fiber Optic In-line Polarizer -
1550nm Fiber Optic In-line Polarizer -
1625 1650nm Fiber Optic In-line Polarizer -
1550±40nm SM Broadband Coupler
