850nm High Power PM Optical Isolator 1-10W

  • Wavelength: 830nm 850nm
  • Handling Power: 1W 2W 3W 5W 10W or Custom Handling Power
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

  The 850nm High Power Polarization Maintaining (PM) Optical Fiber Isolator is an in-line miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It's built with PM Panda fiber and designed to maintain the polarization of the input light with high extinction ratio. The PM isolators are commonly used to protect lasers or amplifiers against back-reflected light. High power up to 10W availible upon request.





                                                          Features


                                                        High Isolation
                                                          High Extinction Ratio
                                                          High Reliability & Stability
                                                          High Power Handling

                                                          Applications
                                                          Fiber Amplifier
                                                          Fiber Laser
                                                          Fiber Sensor
                                                          Lab & Research



  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

850 or customized

nm
  Bandwidth

±10

nm
  Typ. Peak Isolation

32

          dB
  Min. Isolation at 23

25

          dB
  Typ. Insertion Loss at 23

0.8

          dB
  Max. Insertion Loss at -5 to 50

1.2

          dB
  Min. Extinction Ratio for Fast Axis Blocked Type

22

                  dB
  Min. Extinction Ratio for Both Axis Working Type

20

                  dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

1, 3, 5, 10W

W
  Max. Tensile Load

5

N
  Fiber Type

PM 850 Panda Fiber


  Operating Temperature

-5 to +50


  Storage Temperature

-20 to +85

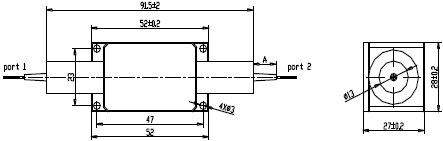

  Package Dimension



mm

  Note
  * Connectors only CW 1W handling power guarantee. Specifications may change without notice.
  * The PM fiber and the connector key are aligned to the slow axis.


  Ordering Information

  HPMI-AAA-B-CC-DD-E-FF
  AAA           B             CC           DD         E               FF
  Wavelength     Fiber Jacket   Fiber Length   Connector   Working Axis     Power

  830 - 830nm     B - 250um Bare   05 - 0.5m     NE - None   F - Fast Axis        01 - 1W
  850 - 850nm     Fiber   08 - 0.8m     SS - Specify   Blocked       02 - 2W
  SSS - Specify     L - 900um Loose   10 - 1.0m         B - Both Axis       03 - 3W
                Tube   15 - 1.5m         Operating       05 - 5W
                              SS - Specify                         10 - 10W
                                                                SS - Specify
