1064±50nm Broadband Polarization Maintaining Optical Circulator

  • Wavelength: or Custom Wavelength 1064nm
  • Handling Power: or Custom Handling Power 300mW
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

  The 3 port 1060 1064nm Broadband Polarization Maintaining (PM) Optical Circulator is a fiber optic componet built with PM panda fiber.  It allows light to be transmitted in only one direction while blocking the opposite transmttion, it's light path is port 1 to port 2, and port 2 to port 3. The PM fiber circulator is widely used in optical fiber networks and amplifiers where polarization maintaining characteristics are needed. High Power handling is available upon request.







                                                            Features
                                                                High Extinction Ratio
                                                                Low IL & High Isolation
                                                                Optical Path Epoxy-free
                                                                Broadband

                                                                Applications
                                                                EDFA & Raman Amplifier
                                                                Fiber Sensor
                                                                Dispersion Compensation
                                                                Test & Meaturement



  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

1060, 1064 or customized

nm
  Bandwidth

±50

nm
  Configuration

1X2, (port 12, 23)


  Typ. Insertion Loss (port 12, 23)

1.2

dB
  Max. Insertion Loss (port 12, 23)

1.8

dB
  Typ.Peak Isolation (port 21, 32)

28

dB
  Min. Isolation (port 21, 32)

16

dB
  Min. Extinction Ratio

20

dB
  Min.Cross Talk (port 13)

50

dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

300 (higher is available upon request)

  mW
  Max. Tensile Load

5

N
  Fiber Type

PM 980 Panda Fiber


  Operating Temperature

-5 to +50

  Storage Temperature

-40 to +85

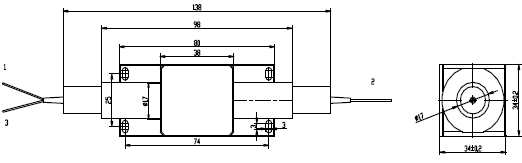

  Package Dimension                 mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
  *  The PM fiber and the connector key are aligned to the slow axis.
  *  For high power apllications, please contact us to confirm details.


  Ordering Information

  BPMCIR-AAAA-BB-C-DD-EE-F
  AAAA         BB           C             DD           EE           F
  Wavelength     Port     Fiber Jacket     Fiber Length     Connector       Working Axis

  1060 - 1060nm     12 - 1 X 2       B - 250um Bare     05 - 0.5m       NE - None     F - Fast Axis
  1064 - 1064nm                   Fiber     08 - 0.8m       FA - FC/APC     Blocked
  SSSS - Specify                   L - 900um Loose   10 - 1.0m       FP - FC/PC
                              Tube     15 - 1.5m       SA - SC/APC
                                            SS - Specify       SP - SC/PC
                                                          LA-  LC/APC
                                                          LP - LC/PC
                                                          SS - Specify
