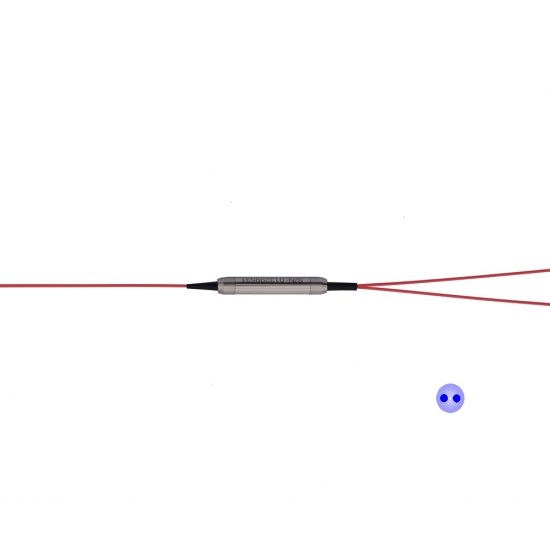

830nm PM Filter Coupler

  • Wavelength: or Custom Wavelength 830nm
  • Handling Power: or Custom Handling Power 300mW
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

  The 830nm 1×2, 2×2 Polarization Maintaining (PM) Filter Coupler is built by using thin-film filter technology. It can be used to split the input signal at various ratios while preserving the polarization with high extinction ratio.




                                                    Features
                                                    Low Cost
                                                    High Polarization Extinction Ratio
                                                    Compliant to Telcordia GR-1221-CORE


                                                    Applications
                                                    Fiber Amplifier
                                                    Fiber Sensor
                                                    Power Monitoring
                                                    Fiber Laser
                                                    Lab & Research


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

830 or customized

nm
  Bandwidth

±15 (±40nm available upon request)

nm
  Configuration

1X2

2X2


  Max. Excess Loss

1.2

1.4

dB
  Min. Extinction Ratio

20

dB
  Max. Uniformity (for 50/50 only)

0.6

0.8

dB
  Max. Coupling Ratio Tolerance

99/1±0.4%, 95/5±1.5%, 90/10±2.0%, 80/20±2.5%, 70/30±3.0%


  Min. Directivity

55

dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

300 (Higher power available upon request)

mW
  Max. Tensile Load

5

N
  Fiber Type

PM Panda Fiber on Input & Output Port




PM Panda Fiber or HI 780 Fiber on Tap Port


  Operating Temperature

-5 to +70


  Storage Temperature

-40 to +85


  Package Dimension

Φ5.5×L35

mm

  Note
  *  Test at center wavelength without connector. For devices with connectors, EL will be 0.2dB higher, and PER will be 2dB lower.
  *  The PM fiber and the connector key are aligned to the slow axis.


  Ordering Information

  PMFC-AAA-BB-CC-DD-E-FF-GG-H
  AAA       BB   CC     DD           E           FF       GG       H
  Wavelength Port Coupling Ratio Fiber Type on Tap Port     Fiber Jacket   Fiber Length Connector   Working Axis

  810 - 810nm   12 - 1X2 01 - 01/99 PM - PM Panda Fiber B - 250um Bare 05 - 0.5m   NE - None   F - Fast Axis
  810 - 810nm   22 - 2X2 02 - 02/98 H7 - HI 780C Fiber Fiber 08 - 0.8m   FA - FC/APC   Blocked
  850 - 850nm         04 - 04/96 SS - Specify L - 900um Loose 10 - 1.0m   FP - FC/PC   B - Both Axis
  SSS - Specify       05 - 05/95               Tube 15 - 1.5m   SA - SC/APC   Operating
                  10 - 10/90               C - 3.0mm Cable SS - Specify   SP - SC/PC
                  20 - 20/80                                     LA-  LC/APC
                  30 - 30/70                                     LP - LC/PC
                  50 - 50/50                                     SS - Specify
                  SS - Specify
