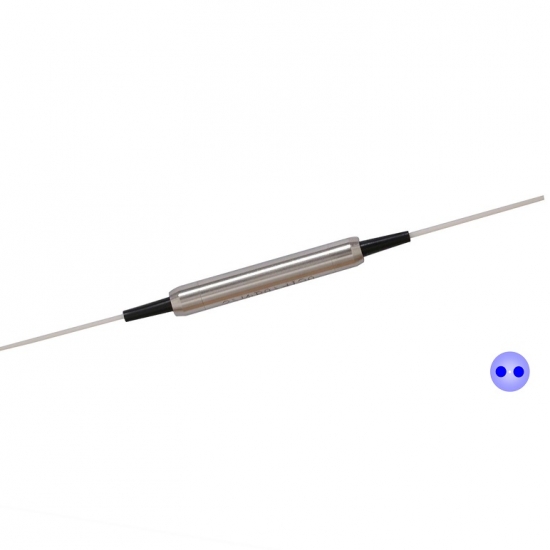

1550nm Polarization Maintaining Optical Isolator

  • Wavelength: or Custom Wavelength 1550nm 1480nm 1310nm
  • Handling Power: 300mW or Custom Handling Power
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

  The 1550nm Polarization Maintaining (PM) Fiber Isolator is an in-line miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It's built with PM Panda fiber and designed to maintain the polarization of the input light with high extinction ratio. The PM isolators are commonly used to protect lasers or amplifiers against back-reflected light. Dual stage isolator means two singe stage isolators are packaged into one compact housing. High power 1550nm PM isolator availible upon request.





                                                      Features
                                                      High Isolation
                                                      High Extinction Ratio


                                                  Telcordia Test Compliant
                                                      High Power Available upon Request

                                                      Applications
                                                      Fiber Amplifier
                                                      Fiber Laser
                                                      Fiber Sensor
                                                      High Speed Optical Communications
                                                      Instrumentations


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

1310, 1480, 1550 or customized

nm
  Bandwidth

±20

nm
  Stage

Single Stage

Dule Stage


  Typ. Peak Isolation

42

58

dB
  Min. Isolation at 23

28

48

dB
  Typ. Insertion Loss at 23

0.4

0.5

dB
  Max. Insertion Loss at -5 to 50

0.55

0.65

dB
  Min. Extinction Ratio for Fast Axis Blocked Type

24

                  dB
  Min. Extinction Ratio for Both Axis Working Type

20

                  dB
  Min. Return Loss

55

dB
  Max. Optical Power (Continuous Wave)

300 (higher power available upon request)

mW
  Max. Tensile Load

5

N
  Fiber Type

PM Panda Fiber on Input & Output Port


  Operating Temperature

-5 to +50


  Storage Temperature

-40 to +85


  Package Dimension

Φ5.5×L35

mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
  *  The PM fiber and the connector key are aligned to the slow axis.


  Ordering Information

  PMI-AAAA-B-C-DD-EE-F
  AAAA         B             C             DD           EE           F
  Wavelength     Stage     Fiber Jacket     Fiber Length     Connector       Working Axis

  1310 - 1310nm     S - Single Stage   B - 250um Bare   05 - 0.5m       NE - None     F - Fast Axis
  1480 - 1480nm     D - Dual Stage   Fiber   08 - 0.8m       FA - FC/APC     Blocked
  1550 - 1550nm                   L - 900um Loose   10 - 1.0m       FP - FC/PC     B - Both Axis
  SSSS - Specify                   Tube   15 - 1.5m       SA - SC/APC     Operating
                                  SS - Specify       SP - SC/PC
                                                          LA-  LC/APC
                                                          LP - LC/PC
                                                          SS - Specify
