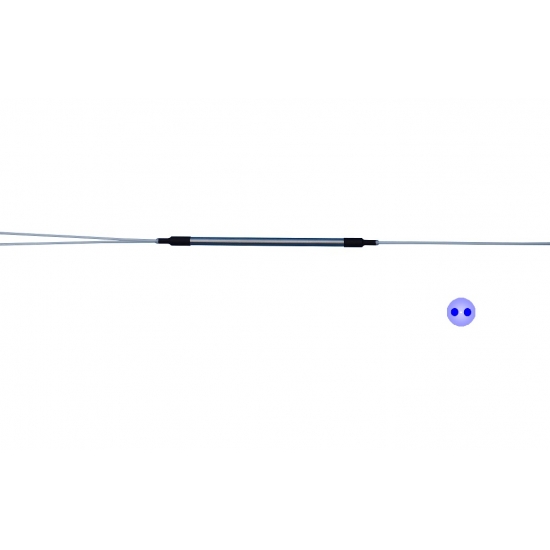

780/850nm Polarization Maintaining Fused WDM

  • Wavelength: 780nm 850nm or Custom Wavelength
  • Handling Power: 2W or Custom Handling Power
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

The 780/850nm Fused Polarization Maintaining (PM) Wavelength Division Mulitplexer (WDM) is based on fused biconical taper (FBT) technology. It provides wavelength division multiplexing while maintaining signal polarization with high extinction ratio.

                                                        Features


                                                  Low Insertion Loss
                                                        High Extinction Ratio
                                                        High Power Handling
                                                        Telcordia Compliant Test

                                                        Applications
                                                        EDFA
                                                        Fiber Laser
                                                        Lab & Research


Performance Specification

Parameter

Value

Unit
            Wavelength

850±5

nm
Signal Port     Insertion Loss

0.7 (Typ.), 1.0 (Max.)

dB
            Isolation @ 850±5nm

18 (Typ.), 15 (Min.)

    dB
            Wavelength

780±5

nm
Pump Port     Insertion Loss

0.7 (Typ.), 1.0 (Max.)

dB
            Isolation @ 1064±5nm

18 (Typ.), 15 (Min.)

    dB
Typ. Extinction Ratio

19

dB
Min. Extinction Ratio

17

dB
Min. Return Loss

50

dB
Max. Optical Power (Continuous Wave)

2 (higher power available upon request)

      W
Max. Tensile Load

5

N
Fiber Type

PM Panda Fiber on Each Port


Operating Temperature

-40 to +80

Storage Temperature

-50 to +85

Package Dimension

Φ3.0×L76

mm

Note
*  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*  Slow axis operating as standard if no special requirement, fast axis operating available upon request.
*  The PM fiber and the connector key are aligned to the slow axis.


Ordering Information

PMWDM-AAA/AAA-B-CC-DD
AAA/AAA                     B                 CC             DD
Wavelength               Fiber Jacket         Fiber Length       Connector

780/850 - 780/850nm           B - 250um Bare       05 - 0.5m       NE - None
SSS/SSS - Specify           Fiber       08 - 0.8m       FA - FC/APC
            L - 900um Loose       10 - 1.0m       FP - FC/PC
            Tube       15 - 1.5m       SA - SC/APC
                              SS - Specify       SP - SC/PC
                                              LA-  LC/APC
                                                              LP - LC/PC
                                                              SS - Specify
