780 790 nm Polarization Maintaining Optical Isolator

  • Wavelength: 780nm 793nm
  • Handling Power: 300mW 500mW or Custom Handling Power
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

The 780, 790 nm Polarization Maintaining (PM) Optical Fiber Isolator is an in-line miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It's built with PM Panda fiber and designed to maintain the polarization of the input light with high extinction ratio. The PM isolators are commonly used to protect lasers or amplifiers against back-reflected light. High power 780, 790 nm PM isolator availible upon request.



                                                      Features
                                                        High Isolation
                                                        High Extinction Ratio
                                                        High Power Available upon Request

                                                        Applications
                                                        Fiber Amplifier
                                                        Fiber Laser
                                                        Fiber Sensor
                                                        High Speed Optical Communications
                                                        Instrumentations


Performance Specification

Parameter

Value

Unit
Center Wavelength

780, 790 or customized

nm
Bandwidth

±5

nm
Typ. Peak Isolation

30-35

          dB
Min. Isolation at 23

25

          dB
Typ. Insertion Loss at 23

0.6

          dB
Max. Insertion Loss at -5 to 50

1.0

          dB
Min. Extinction Ratio for Fast Axis Blocked Type

22

                  dB
Min. Extinction Ratio for Both Axes Working Type

20

                  dB
Min. Return Loss

50

dB
Max. Optical Power (Continuous Wave)

300 (higher power available upon request)

mW
Max. Tensile Load

5

N
Fiber Type

PM 850 Panda Fiber on Input & Output Port


Operating Temperature

-5 to +50

Storage Temperature

-40 to +85

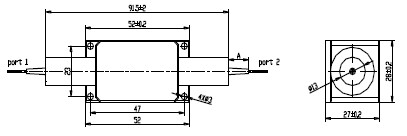

Package Dimension                 mm

Note
*  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*  The PM fiber and the connector key are aligned to the slow axis.
*  Package size may change without notice.


Ordering Information

PMI-AAA-BB-C-DD-EE-F
AAA           BB               C             DD         EE         F
Wavelength     Fiber Type         Fiber Jacket     Fiber Length   Connector   Working Axis

780 - 780nm     P8 - PM 850           B - 250um Bare   05 - 0.5m     NE - None   F - Fast Axis
790 - 790nm     SS - Specify           Fiber   08 - 0.8m     FA - FC/APC   Blocked
SSS - Specify                       L - 900um Loose   10 - 1.0m     FP - FC/PC   B - Both Axes
                          Tube   15 - 1.5m     SA - SC/APC   Operating
                                              SS - Specify     SP - SC/PC
                                                          LA-  LC/APC
                                                          LP - LC/PC
                                                          SS - Specify
