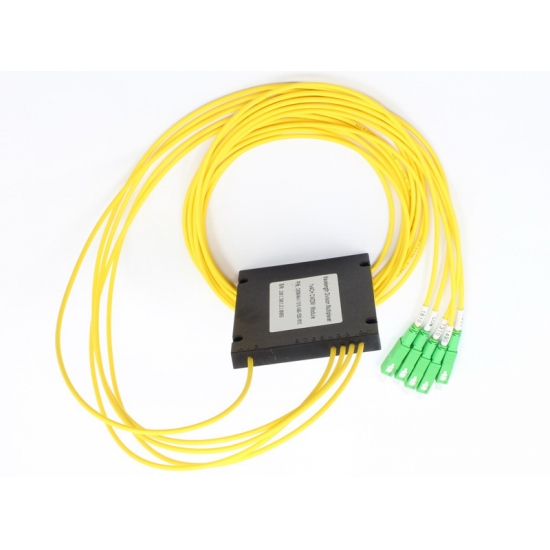

1X4 200G Polarization Maintaining DWDM Module

  • Wavelength: or Custom Wavelength
  • Handling Power: 300mW
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

  The 4 Channel 200G Polarization Maintaining Dense Wavelength Division Mulitplexer (PM DWDM Module) is based on thin-film filter technology compliant to ITU standard. It provides single channel add or drop function, or it can be cascaded into sequence for multi-channel applications in DWDM systems. 1X4, 1X8 Multi-channel are available.






                                                              Features
                                                              ITU Standard
                                                              Low IL & High ER
                                                              High Channel Isolation
                                                              Telcordia Compliant Test

                                                              Applications
                                                              Broadband Optical System
                                                              DWDM System
                                                              Optical Communications
                                                              Fiber Sensor


  Performance Specification

  Parameter

Value

      Unit
  Channel Spacing

200

      GHz
  Center Wavelength

ITU Grid

      nm
  Min. Channel Passband (@-0.5dB)

0.5 (±0.25)

      nm
  Max. Insertion Loss

2.1

      dB
  Min. Adjacent Channel Isolation for Demux

25 (15 for Mux)

      dB
  Min. Non-Adjacent Channel Isolation for Demux

40 (25 for Mux)

      dB
  Typ. Extinction Ratio

20

      dB
  Min. Extinction Ratio

18

      dB
  Min. Directivity

50

      dB
  Max. Thermal Stability

0.005

      dB/
  Center Wavelength Stability

0.002

      nm/
  Min. Return Loss

45

      dB
  Max. Optical Power (Continuous Wave)

300

      mW
  Max. Tensile Load

5

      N
  Fiber Type

PM Panda Fiber


  Operating Temperature

-5 to +70


  Storage Temperature

-40 to +85


  Package Dimension

Plastic Box 100X80X10

      mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
  *  The PM fiber and the connector key are aligned to the slow axis.


  Ordering Information

  PMDWDMM-AAA-BB-C-DD-E-FF-GG
  AAA           BB       C         DD             E           FF       GG
  Channel Spacing Channel Number   Module Type Initial Wavelength                  (ITU Grid)   Fiber Jacket   Fiber Length Connector

  100 - 100GHz     04 - 4 Channel M - Mux   01 - CH01       B - 250um Bare 05 - 0.5m   NE - None
  200 - 200GHz     08 - 8 Channel D - Demux   02 - CH02       Fiber 08 - 0.8m   FA - FC/APC
                SS - Specify           ...        L - 900um Loose 10 - 1.0m   FP - FC/PC
                                    60 - CH60       Tube 15 - 1.5m   SA - SC/APC
                                                                SS - Specify   SP - SC/PC
                                                                          LA-  LC/APC
                                                                          LP - LC/PC
                                                                          SS - Specify
