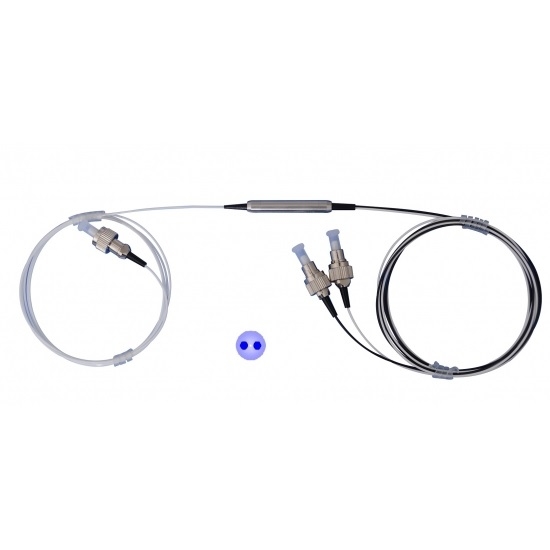

1950/1550nm Polarization Maintaining Filter WDM

  • Wavelength: 1550nm 1950nm 2000nm 2050nm or Custom Wavelength
  • Handling Power: 500mW or Custom Handling Power
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

The 1950/1550nm 1950/1570nm Polarization Maintaining (PM) Filter Wavelength Division Mulitplexer (WDM) is based on thin-film filter technology. It provides wavelength division multiplexing while maintaining signal polarization with high extinction ratio. High power available upon request.

                                                        Features
                                                        Low Insertion Loss


                                                    High Extinction Ratio
                                                        Customized Wavelength Range


                                                        Applications
                                                        EDFA
                                                        Fiber Laser
                                                        Lab & Research


Performance Specification

Parameter

Value

Unit
            Wavelength

1950 (1940-1960)

nm
Pass Band     Insertion Loss

0.8 (Typ.), 1.0 (Max.)

dB
            Isolation

30 (Typ.), 25 (Min.)

    dB
            Wavelength

1550 or 1570 (1550-1590)

nm
Reflection Band Insertion Loss

0.6 (Typ.), 0.8 (Max.)

dB
            Isolation

15 (Typ.), 12 (Min.)

    dB
Typ. Extinction Ratio

20

dB
Min. Extinction Ratio

18

dB
Min. Directivity

55

dB
Max. Thermal Stability

0.005

dB/
Min. Return Loss

50

dB
Max. Optical Power (Continuous Wave)

500 (higher power available upon request)

      mW
Max. Tensile Load

5

N
Fiber Type

PM 1950 Panda Fiber


Operating Temperature

-5 to +70

Storage Temperature

-40 to +85

Package Dimension

 Φ5.5×L35

mm

Note
*  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*  The PM fiber and the connector key are aligned to the slow axis.


Ordering Information

PMFWDM-AAAA/AAAA-B-CC-DD
AAAA/AAAA                   B                 CC             DD
Wavelength               Fiber Jacket         Fiber Length       Connector

1950/1550 - 1950/1550nm           B - 250um Bare       05 - 0.5m       NE - None
1950/1570 - 1950/1570nm           Fiber       08 - 0.8m       FA - FC/APC
SSSS/SSSS - Specify           L - 900um Loose       10 - 1.0m       FP - FC/PC
            Tube       15 - 1.5m       SA - SC/APC
                              SS - Specify       SP - SC/PC
                                              LA-  LC/APC
                                                              LP - LC/PC
                                                              SS - Specify
