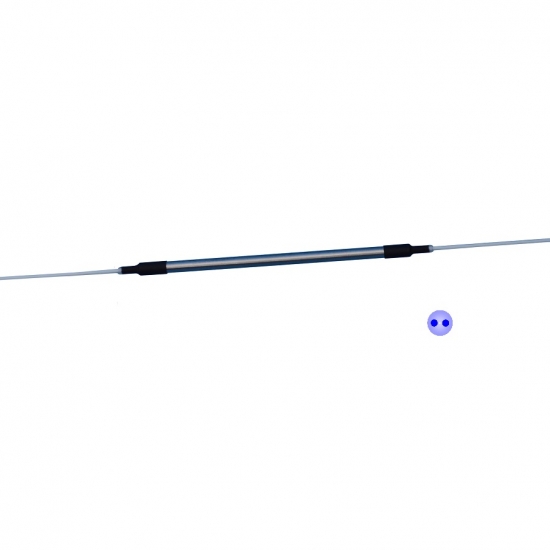

1480nm PM Fixed In-line Optical Attenuator

  • Wavelength: 1310nm 1480nm 1550nm or Custom Wavelength
  • Handling Power: 2W or Custom Handling Power
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

  The 1480 nm Polarization Maintaining In-line Fixed Optical Attenuator utilizes fused polarization maintaining panda fiber to achieve precise attenuation value up to 30dB. Each cord is custom built length and variety of connector styles of your choice. Please select operation wavelength from 780nm to 2000nm. And 1, 2, 3, 5, 10, 15, 20, 30dB attenuation value attenuators are available.




                                                            Features
                                                            Low Excess Loss


                                                      High Extinction Ratio
                                                            Precise Fixed Attenuation
                                                            High Power Handling

                                                            Applications
                                                            Power Control in Fiber Systems
                                                            Test & Measurement
                                                            Lab and Reseach
                                                            Power Equalization


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

1480 or customized

nm
  Bandwidth

±20

nm
  Typ. Excess Loss

0.4

dB
  Max. Excess Loss

0.6

dB
  Min. Extinction Ratio

20

dB
  Insertion Loss (Attenuation) Tolerance 1 dB

±0.1

    dB
  2 dB

±0.2

    dB
  3 dB

±0.3

    dB
  5 dB

±0.7

    dB
  10 dB

±1.0

    dB
  15 dB

±1.8

    dB
  20 dB

±2.5

    dB
  30 dB

±3.0

    dB
  Max. Optical Power (Continuous Wave)

2

  W
  Max. Tensile Load

5

N
  Fiber Type

PM Panda Fiber


  Operating Temperature

-40 to +85


  Storage Temperature

-50 to +85


  Package Dimension

Φ3xL54 for bare fiber, Φ3xL70 for 900um loose tube

mm

  Note
  * For devices with connectors, EL will be 0.2dB higher, and ER will be 2dB lower.
  * The PM fiber and the connector key are aligned to the slow axis.


  Ordering Information

  PMFVOA-AAAA-BB-C-DD-EE
  AAAA             BB               C                 DD             EE
  Wavelength     Attenuation Value     Fiber Jacket         Fiber Length     Connector

  1310 - 1310nm         01 - 1dB         B - 250um Bare       05 - 0.5m       NE - None
  1480 - 1480nm         02 - 2dB         Fiber       08 - 0.8m       FA - FC/APC
  1550 - 1550nm         03 - 3dB         L - 900um Loose       10 - 1.0m       FP - FC/PC
  SSSS - Specify         05 - 5dB         Tube       15 - 1.5m       SA - SC/APC
                    10 - 10dB                           SS - Specify       SP - SC/PC
                    15 - 15dB                                   LA-  LC/APC
                    20 - 20dB                                           LP - LC/PC
                    30 - 30dB                                           SS - Specify
                    SS - Specify
