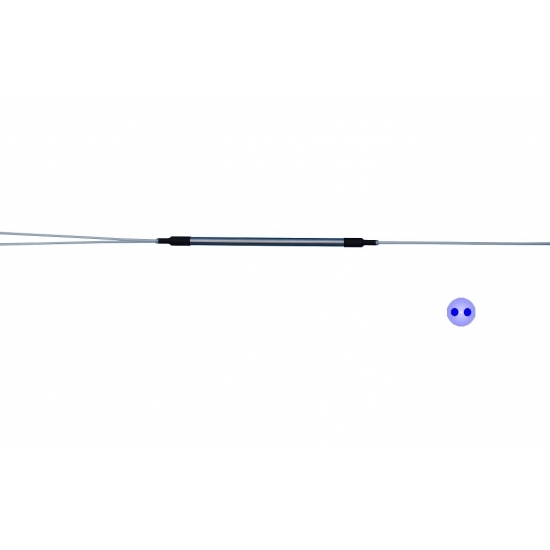

637/685nm Polarization Maintaining Fused WDM

  • Wavelength: or Custom Wavelength 685nm 637nm
  • Handling Power: or Custom Handling Power 2W
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

The 637/685nm Fused Polarization Maintaining (PM) Wavelength Division Mulitplexer (WDM) is based on fused biconical taper (FBT) technology. It provides wavelength division multiplexing while maintaining signal polarization with high extinction ratio.

                                                        Features
                                                        Low Insertion Loss


                                                  High Extinction Ratio
                                                        High Power Handling
                                                        Telcordia Compliant Test

                                                        Applications
                                                        EDFA
                                                        Fiber Laser
                                                        Lab & Research


Performance Specification

Parameter

Value

Unit
            Wavelength

637±3.5

nm
Pump Port     Max. Insertion Loss

1.3

dB
            Min. Isolation @ 685±3.5nm

13

    dB
            Wavelength

685±3.5

nm
Signal Port     Max. Insertion Loss

1.3

dB
            Min. Isolation @ 637±3.5nm

13

    dB
Min. Extinction Ratio

13

dB
Max. Optical Power (Continuous Wave)

2

      W
Max. Tensile Load

5

N
Fiber Type

PM-630 Fiber on Each Port


Operating Temperature

-40 to +85

Storage Temperature

-50 to +85

Package Dimension

Φ3.0×L76

mm

Note
*  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*  Slow axis operating as standard if no special requirement, fast axis operating available upon request.
*  The PM fiber and the connector key are aligned to the slow axis.


Ordering Information

PMWDM-AAA/AAA-B-CC-DD
AAA/AAA                     B                 CC             DD
Wavelength               Fiber Jacket         Fiber Length       Connector

637/685 - 637/685nm           B - 250um Bare       05 - 0.5m       NE - None
SSS/SSS - Specify           Fiber       08 - 0.8m       FA - FC/APC
            L - 900um Loose       10 - 1.0m       FP - FC/PC
            Tube       15 - 1.5m       SA - SC/APC
                              SS - Specify       SP - SC/PC
                                              LA-  LC/APC
                                                              LP - LC/PC
                                                              SS - Specify
