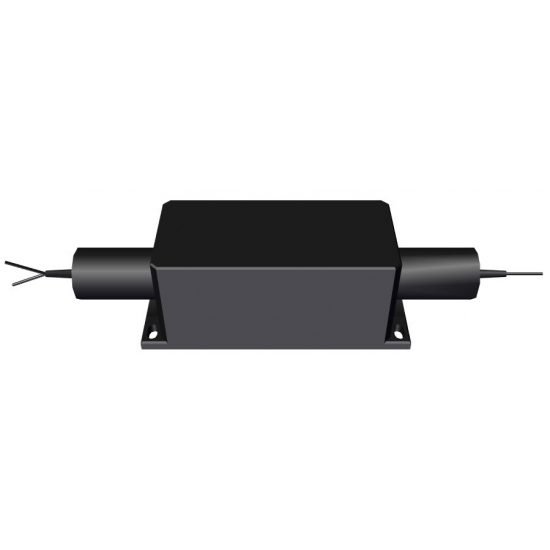

1030nm Polarization Maintaining Optical Circulator

  • Wavelength: or Custom Wavelength 1040nm 1030nm
  • Handling Power: or Custom Handling Power 300mW
  • Fiber Type: Polarization Maintaining (PM) Panda Fiber
Product Details

  The 3 port 1030nm polarization maintaining (PM) optical circulator is a fiber optic componet built with PM panda fiber.  It allows light to be transmitted in only one direction while blocking the opposite transmttion, it's light path is port 1 to port 2, and port 2 to port 3. The PM fiber circulator is widely used in optical fiber networks and amplifiers where polarization maintaining characteristics are needed. High Power handling is available upon request.





                                                            Features


                                                        High Extinction Ratio
                                                            Low IL & High Isolation
                                                            Optical Path Epoxy-free
                                                            High Power available on request

                                                            Applications
                                                            EDFA & Raman Amplifier
                                                            Fiber Sensor
                                                            Dispersion Compensation
                                                            Test & Meaturement
                                                            WDM Systems


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength

1030 or customized

nm
  Bandwidth

±5

nm
  Configuration

1X2, (port 12, 23)


  Typ. Insertion Loss (port 12, 23)

1.0

dB
  Max. Insertion Loss (port 12, 23)

1.5

dB
  Typ.Isolation (port 21, 32)

28

dB
  Min. Isolation (port 21, 32)

22

dB
  Min. Extinction Ratio

20

dB
  Min.Cross Talk (port 13)

50

dB
  Min. Return Loss

50

dB
  Max. Optical Power (Continuous Wave)

300 (higher is available upon request)

  mW
  Max. Tensile Load

5

N
  Fiber Type

PM 980 Panda Fiber


  Operating Temperature

0 to +60


  Storage Temperature

-40 to +85


  Package Dimension



mm

  Note
  *  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
  *  The PM fiber and the connector key are aligned to the slow axis.
  *  For high power apllications, please contact us to confirm details.


  Ordering Information

  PMCIR-AAAA-BB-C-DD-EE-F
  AAAA           BB           C             DD           EE           F
  Wavelength     Port     Fiber Jacket     Fiber Length     Connector       Working Axis

  1030 - 1030nm     12 - 1 X 2       B - 250um Bare     05 - 0.5m       NE - None     F - Fast Axis
  SSS - Specify                   Fiber     08 - 0.8m       FA - FC/APC     Blocked
                              L - 900um Loose   10 - 1.0m       FP - FC/PC     B - Both Axis
                              Tube     15 - 1.5m       SA - SC/APC     Operating
                                            SS - Specify       SP - SC/PC
                                                          LA-  LC/APC
                                                          LP - LC/PC
                                                          SS - Specify
